| SN | Item | Parameters |
|---|---|---|

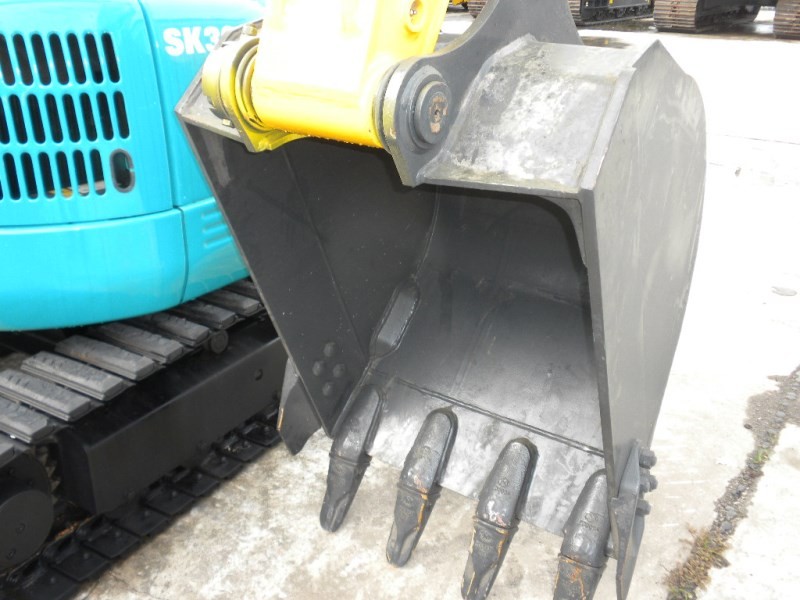

| Basic Parameters | Standard Bucket Capacity (SAE) | 0.58 m³ |
| Operating Weight | 14300 kg | |
| Engine Rated Power | 86 kW/2200 rpm (Gross) | |
| Engine Model | Cummins 4BTAA3.9-C115 | |
| Main Performance | Digging Force Of Arm | 71 KN |
| Digging Force Of Bucket | 87 KN | |
| Max Traction | 123 KN | |
| Travel Speed | 3.0/5.2 km/h | |
| Machine Size | Overall Size | 8000 mm x 2600 mm x 2750 mm (To Top Of Cab) |
| Operating Range | Max Excavating Distance | 8530 mm |
| Max Excavating Depth | 5510 mm | |
| Max Excavating Height | 8650 mm |
